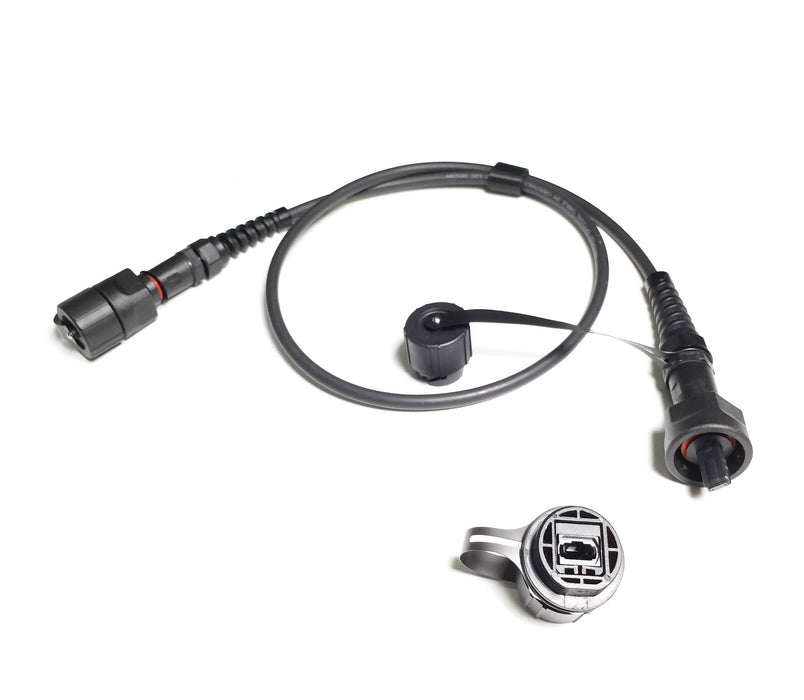

![ODVA - MTP/MPO-MTP/MPO Fiber Optic Cable](http://dnt.jpcconnectivity.com/cdn/shop/products/product_MPO_MTP__1_804x700.jpg?v=1598868681)
SKU:
Features
- Ruggedized sealing system for Fiber-to-the-Antenna and industrial applications
- Open bulkhead for easy access to SFP
- Positive mechanical feedback to operator when fully mated
- MPO/MTP interface
- Robust bayonet locking for easy, fast and secure mating
- Waterproof, dust proof and corrosion resistant
Specifications
Mating mechanism | bayonet style locking | |
Housing material | high performance plastic | |
Technology | MT Ferrules with full PPS thermoplastic | |
Mechanical performance | tensile load static side load |
150 N 30 N |
Operating temperature | −40 to +70 °C | |
Mating durability | IEC 61300-2-2 | 100 cycles |
Ingress protection (mated) | IEC 60529 | IP67 |
Vibration | IEC 61300-2-1 | passed 10 to 500 Hz/10g |
Performance standards | IEC 61753-1 cat. E Telcordia GR 3120 |
compliant compliant |
Optical performance
Insertion loss | single-mode single-mode Low Loss multimode multimode Low Loss |
≦ 0.75 dB ≦ 0.35 dB ≦ 0.5 dB ≦ 0.35 dB |
Return loss | single-mode multimode |
APC≥ 60 dB PC≥ 20 dB |
