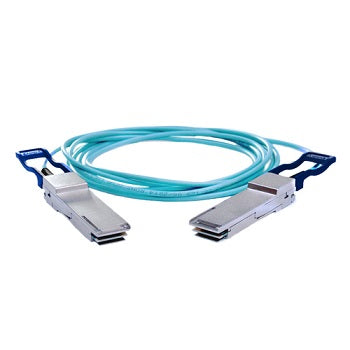

QSFP28 AOC
Description
100G QSFP28 active optical cables (AOC) that allows bi-directional 100Gbps transmission suitable for Ethernet 100GBASE-SR4 and InfiniBand EDR application and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.
Benefits / Features
- Compliant with IEEE 100GBASE-SR4 /25GBASE-SR
- Data rates : 25 Gbps
- Maximum aggregate data rate: 100Gb/s (4 x 25Gb/s)
- I/O Connector designed for high speed differential signal applications
- Connector Compliant with SFF 8665 QSFP+ 28 Gb/s 4X Pluggable
- Transceiver Solution
- Low Power Consumption < 0.5W
- Fiber: OM2/OM3/OM4
- Length = 1- 100 meters
- EEPROM signature can be customized
- Full Duplex 4 Channel 850nm Parallel Active Optical Cable
- Hot pluggable electrical interfaces
- Multi-channel 850nm VCSEL array
- Multi-channel PIN-detector array
- Laser Class 1 Compliant
Specification
- Type: Active / Optical
- End A =QSFP28 4X (SFF 8665)
- End B = QSFP28 4X (SFF 8665)
- Bend Radius = 25m
- Data rates: 100Gbps
- Impedance: 100 ohms differential, AC-coupled I/O
- Temperature Range - Operating: -0°C to +70°C
- Performance: BER < 10-12
Product environmental compliance
- RoHS Compliant
Applcation/ Target Market
- Storage, Switch, & RAID Systems
- High-Performance Computing (HPC)
- Network Interface Cards (NIC's)
- Telecommunication equipment
- Data center and enterprise storage systems
